Diesel Power Module

2007-2012 SPRINTER VAN

2012-2015 SPRINTER VAN

2016 SPRINTER VAN

2017-2018 SPRINTER VAN

2019-2020 SPRINTER VAN



For the 2.7L engines it’s easier to install these diesel power modules than on a 3.0L engine.
The two connections on the engine where this connects to are the same as the ones shown in the 3.0L instructions. Except they are more towards the front of the engine on the 2.7 and on the 3.0 one of them is more in the back of the engine.

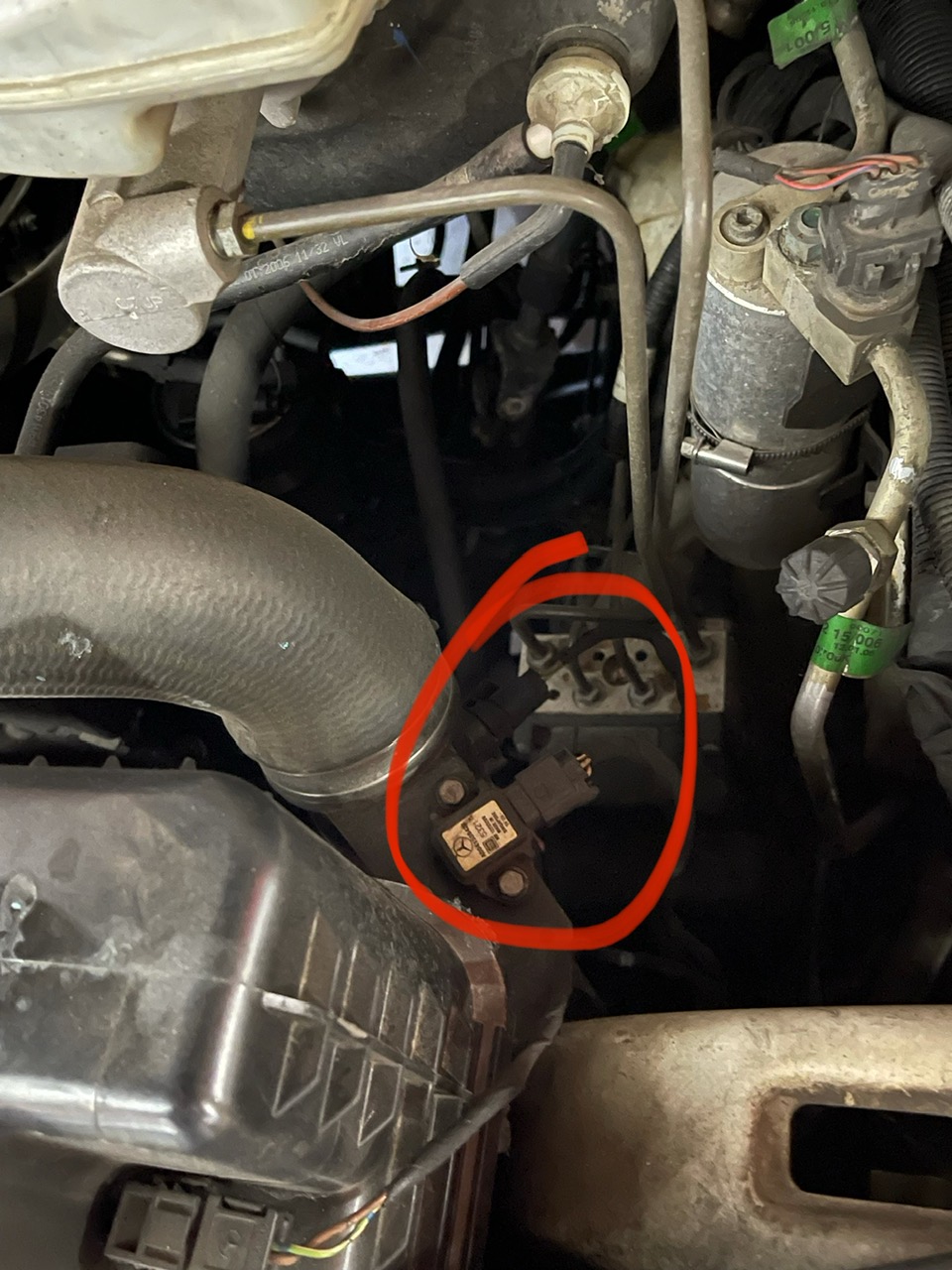

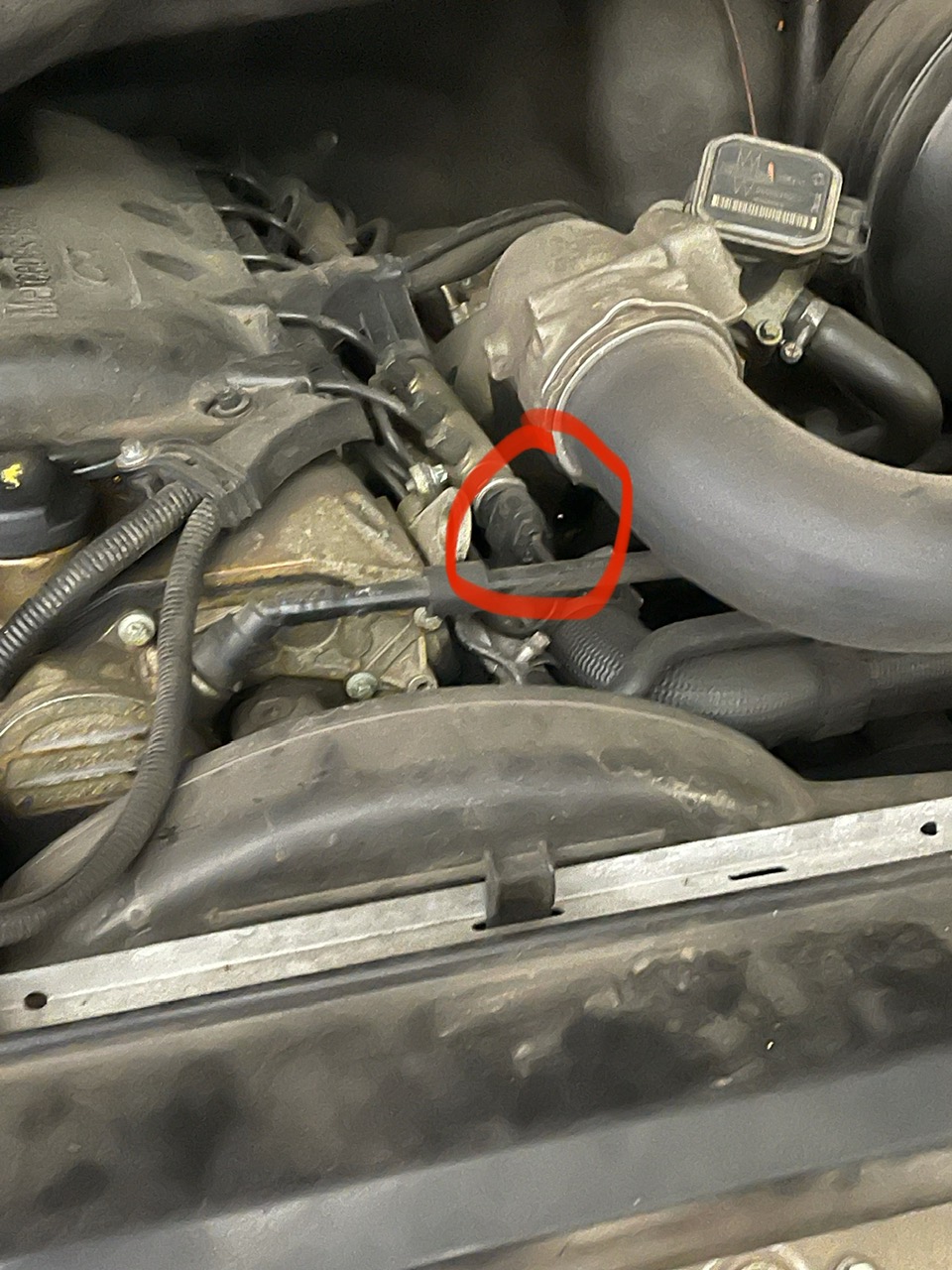

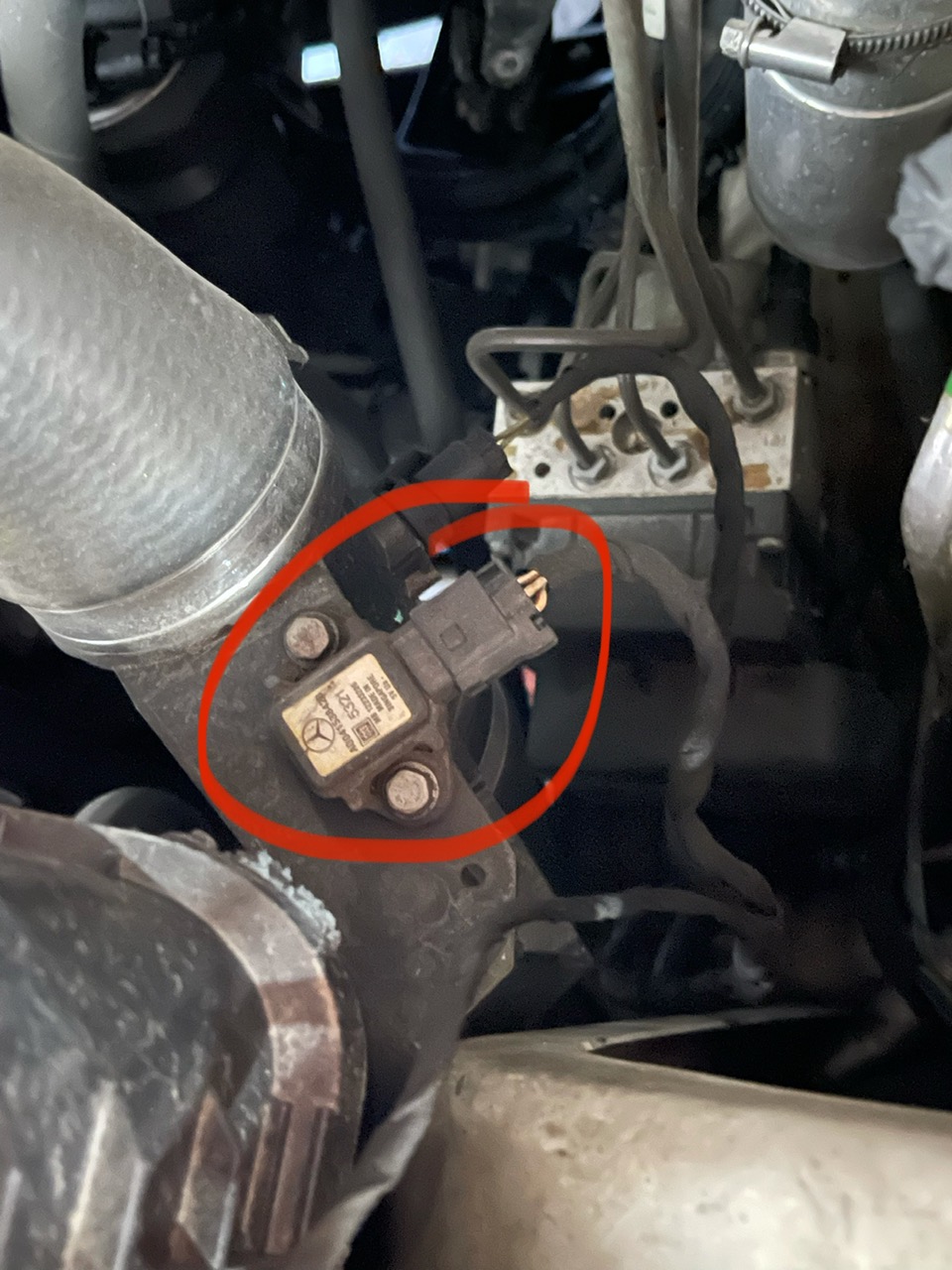

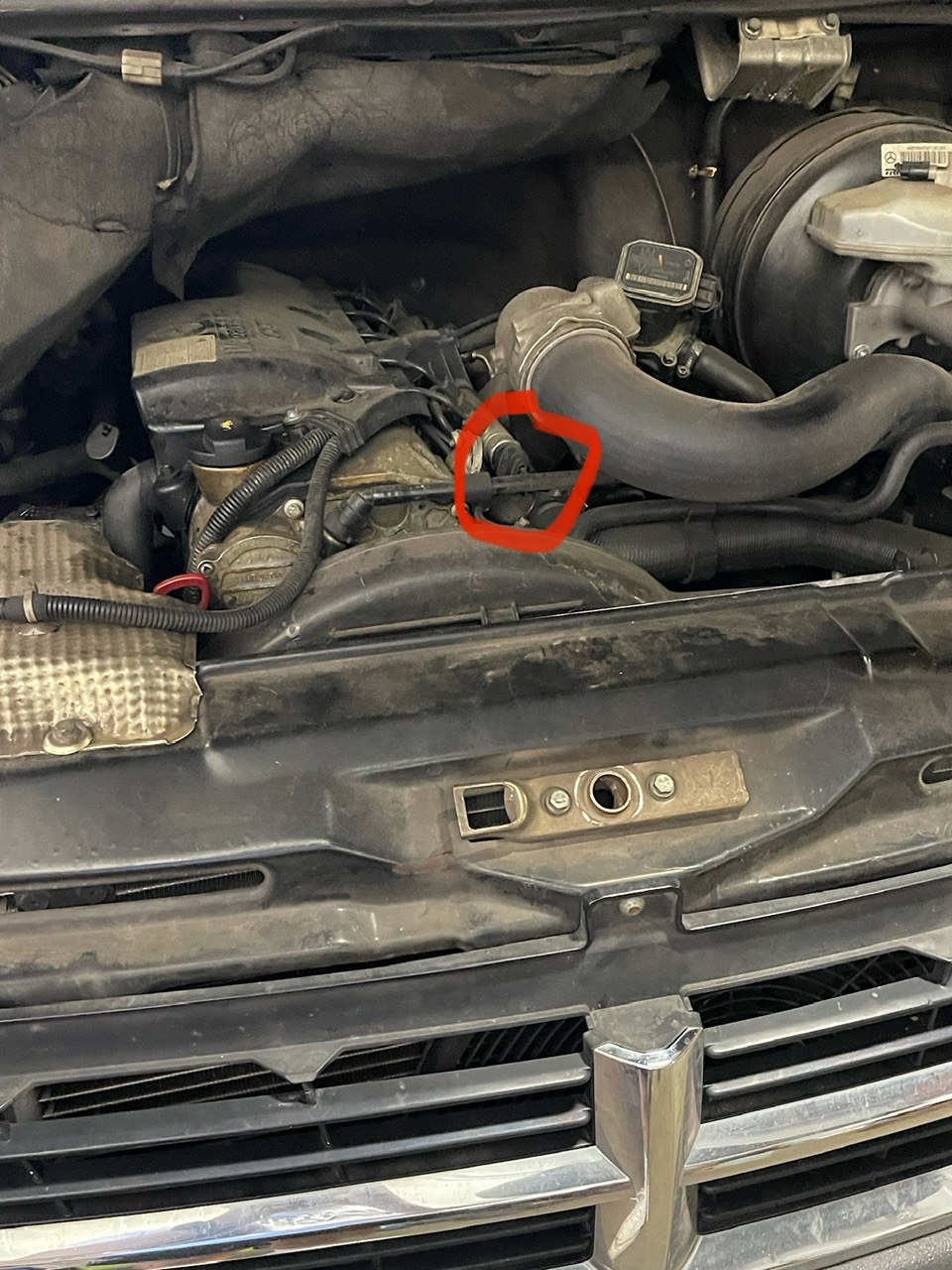

These are the connections where you need to connect your harness.
