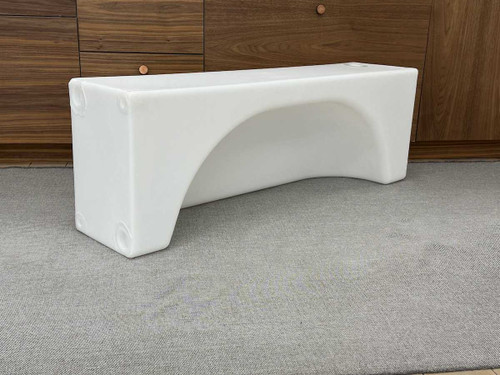

20 Gallon Wheel Well Water Tank (Left)

Smart Fit. Clean Layout. Built for Sprinter Van Water Storage.

The 20 Gallon Wheel Well Water Tank (SP-L-20) is engineered to maximize otherwise wasted space around the wheel well, providing efficient water storage without sacrificing interior layout options. Designed for Sprinter builds but compatible with additional van platforms, this tank delivers a balanced footprint with flexible left-side installation.

Fitment

Designed For:

• Mercedes Sprinter 2500 (all lengths)

• Sprinter T1N

• Ford Transit Single Rear Wheel Vans (slightly smaller wheel wells allow extra insulation room)

PROMASTER Fitment

• Promaster wheel wells are larger; tank must be elevated 3.5" for proper clearance.

Placement Options

• Driver Side: Tank sits behind the wheel well

• Passenger Side: Tank sits in front of the wheel well

Either orientation ensures a clean, optimized layout.

Key Features

Wheel-Well-Optimized Design

Stores 20 gallons while taking advantage of unused wheel well space—ideal for maximizing interior build flexibility.

Durable, Safe Construction

• Made from BPA-free, food-grade polyethylene

• Built for long-term durability in mobile environments

• Made in the USA

Flexible Plumbing Configuration

Rectangular End:

• (2) 1.5" NPT ports (need to be drilled out)

• *(2) 1/2" NPT ports

Open End:

• (1) 1/2" NPT port on the bottom (ideal drain location)

Top Port:

• (1) 1.5" NPT port (needs to be drilled out — fill or sensor use)

Vent Required

Tank is not pressurized — must be vented for safe standalone or system use.

Dimensions

• Capacity: 20 gallons

• Length: 44.5”

• Height: 16”

• Depth: 12.5”

Why Choose This Tank?

✔ Uses wheel well space instead of aisle or cabinet space
✔ Fits Sprinter and several other popular van platforms
✔ Multiple plumbing port options for flexible layouts
✔ Orientation works for either side of the van
✔ Strong, food-safe, USA-made construction

The 20 Gallon Left Wheel Well Water Tank creates efficient, low-profile water storage that keeps your van interior open, ergonomic, and ready for any build plan.
